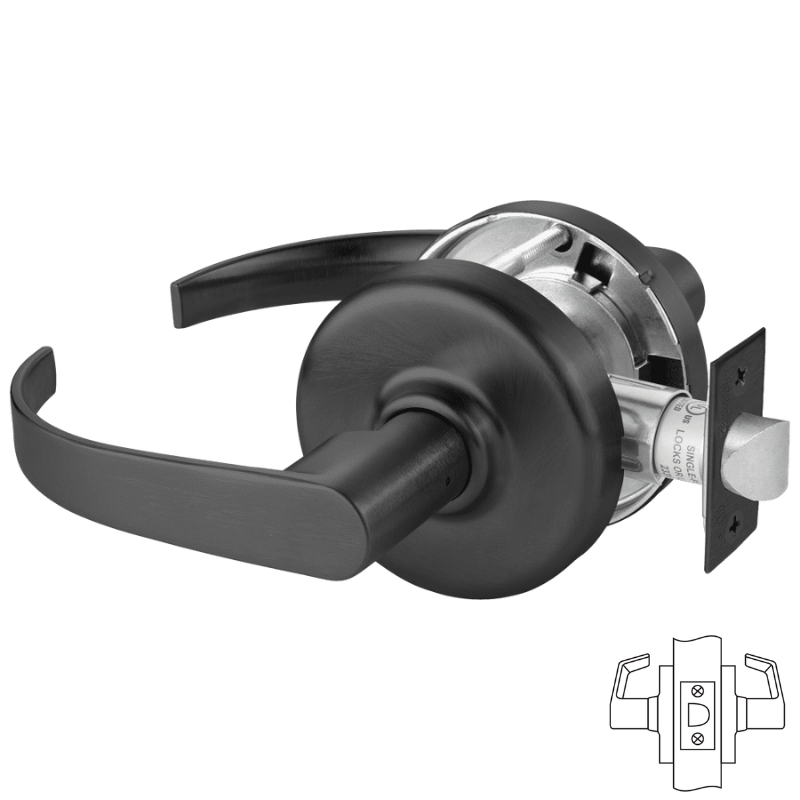

The Corbin Russwin CL3810-PZD Passage Cylindrical Lever Lockset, with the Princeton Lever and a 2-3/4" backset, comes with a 4-7/8" strike and is non-keyed. It boasts a Grade 2 rating and is non-handed, making it a reliable and versatile choice for any space.
Functions: Passage or Closet-Non Keyed
An ideal choice for standard commercial applications, the Corbin Russwin CL3810 Cylindrical Lever Lock provides a cost-effective Grade 2 standard-duty lockset that offers exceptional value and performance. Its compatibility with the CL3300 Series Extra Heavy-Duty Grade 1 and CL3500 Series Heavy-Duty Grade 1 Cylindrical Lever Locksets reduces overall project costs without sacrificing functionality or durability.
Typical applications include: Interior offices; Closets; Multi-family housing; Restaurants; Retail complexes
Key Advantages:
| Manufacturer | Corbin Russwin |
| SKU | CL3810 PZD |
| Unit of Measure | Each |
| Origin | USA |
| Installation | Commercial |
| Fire Rating | 3 Hours {A} |
| Limited Warranty | 7 Years |
| Grade | Grade 2 |
| Cylinder Type | Non-Keyed |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Lever/Knob Design | PZ - Princeton Lever |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Bore Hole Diameter | 2-1/8" |
| Rose/Escutcheon Design | D Rose |
| Handing | Not Handed |
| Lock Face Size | 2-1/4" x 1-1/8" |
| Std. Strike Number | 217L13 |
| Door Thickness | 1-3/8" - 1-3/4" |
| Bolt Projection | 1/2" Latch |
| Std. Strike Type | ANSI Strike |
| Lever/Knob Design Family | Return Lever |
| Function | 10-Passage or Closet Lock |
| Std. Latch Number | 600F09 |
| Std. Latch Type | Spring Latch (Unguarded) |
| Function Family | Passage |
| ANSI Function | F75 - Passage |
