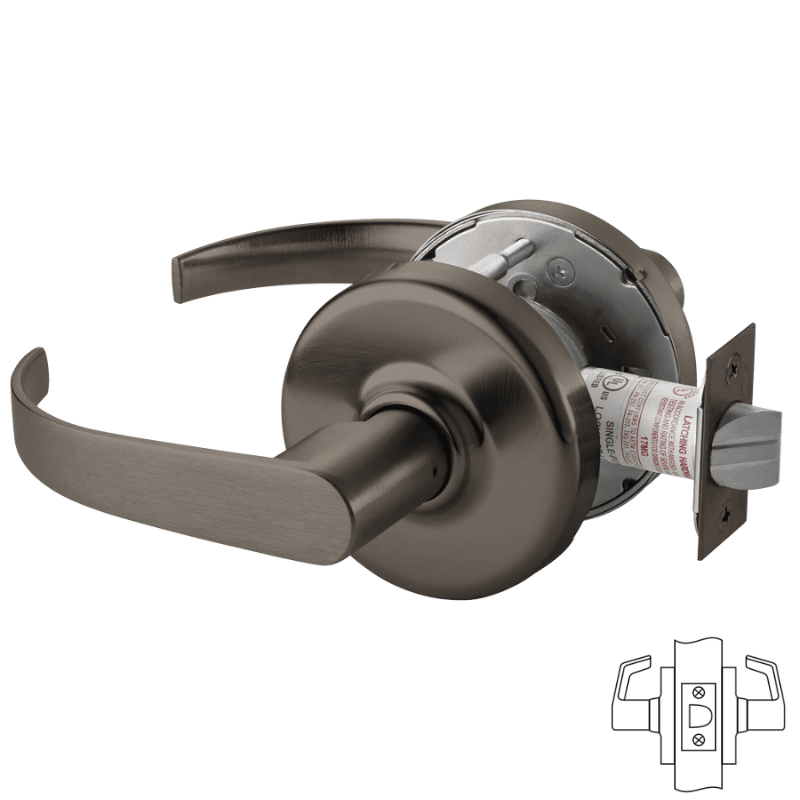

The Corbin Russwin CLX3310-PZD Cylindrical Lock, with a Passage Function and a Non-Keyed design, features a Princeton Lever and a Grade 1 rating, making it suitable for both commercial and residential settings. With a 2-3/4" backset and a 4-7/8" strike, this lock is both secure and convenient to use.
Function Passage or Closet:
| Manufacturer | Corbin Russwin |
| SKU | CLX3310 PZD |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| ANSI Number | F75 |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Function | 10 Passage or Closet |
| Function Family | Passage |
| ANSI Function | F75 - Passage |
| Lever/Knob Design | PZ - Priceton Lever |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design | D Rose |
| Rose/Escutcheon Dimensions | 3-1/2" |
| Cylinder Type | Non-Keyed |
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Std. Latch Number | 867F20 |
| Std. Latch Type | Springlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | SA114 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
